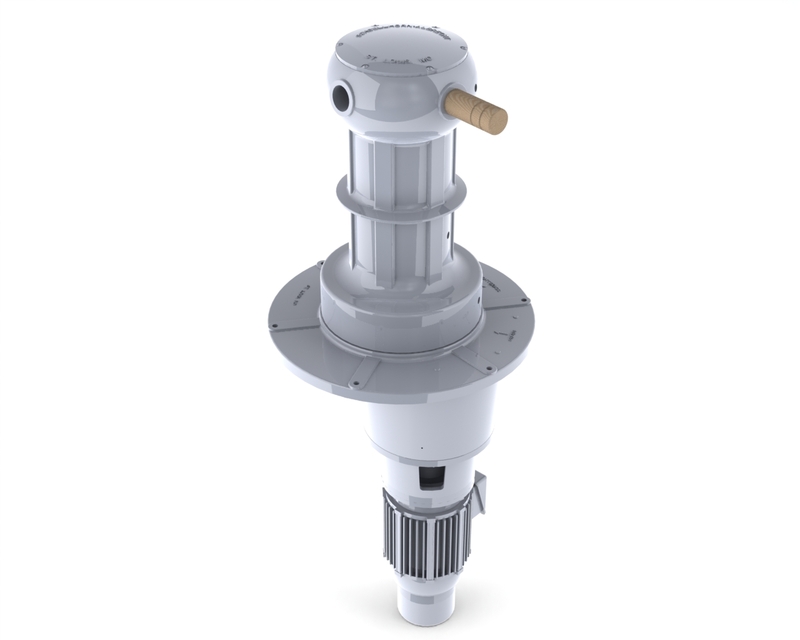

Inland River (Model 22300) Thru-The-Deck
The 22300 Thru-The-Deck Capstan from Schoellhorn-Albrecht has been the trusted capstan for barge moving, buoy handling, and general line handling by U.S.C.G., U.S.A.C.E., and commercial shipyards worldwide. To learn more about the 22300 specifications, Download our Capstan Specifications Brochure or view the table below.
Features
- Thru-The-Deck Mounted, Watertight, Easy Maintenance
- Single Speed or Two Speed Units Available
- Marine Duty Motor and Brake
- Designed for the Harsh Marine Environment
- Barrel can be Whelped or Smooth
Options
- Electric, Pneumatic & Hydraulic (Explosion Proof Motors available)
- Standard & Custom Control Packages
- Special Barrels on Request
| HP | Barrel Size "DIA" (inches) |
Starting Pull (lbs.) |
Running Pull (lbs.) |
FPM |
|---|---|---|---|---|
| ------10------ | ------14------ | ------14,500------ | ------5,300------ | ------50------ |
| 10 | 14 | 22,000 | 8,000 | 34 |
| 15 | 14 | 22,000 | 8,000 | 50 |
| 20 | 14 | 29,400 | 10,700 | 50 |
| 25 | 14 | 36,800 | 13,400 | 50 |
| 10 | 18 | 11,200 | 4,100 | 65 |
| 10 | 18 | 17,000 | 6,200 | 43 |
| 15 | 18 | 17,000 | 6,200 | 65 |
| 15 | 18 | 25,800 | 9,400 | 43 |
| 20 | 18 | 22,800 | 8,300 | 65 |
| 10 | 24 | 8,500 | 3,100 | 86 |
| 10 | 24 | 12,900 | 4,700 | 57 |
| 15 | 24 | 12,900 | 4,700 | 86 |
| 20 | 24 | 17,000 | 6,200 | 86 |
| 10/10 | 14 | 14,500/30,000 | 5,300/10,700 | 50/25 |
| 15/15 | 14 | 22,000/44,000 | 8,000/16,100 | 50/25 |
| 20/20 | 14 | 29,400/59,100 | 10,700/21,500 | 50/25 |
| 10/10 | 18 | 11,200/22,800 | 4,100/8,300 | 65/32 |
| 15/15 | 18 | 17,000/34,300 | 6,200/12,500 | 65/32 |
| 20/20 | 18 | 22,800/45,900 | 8,300/16,700 | 65/32 |
| 10/10 | 24 | 8,500/17,000 | 3,100/6,200 | 86/43 |
| 15/15 | 24 | 12,900/25,800 | 4,700/9,400 | 86/43 |
| 20/20 |
24 | 17,000/34,300 | 6,200/12,500 | 86/43 |
