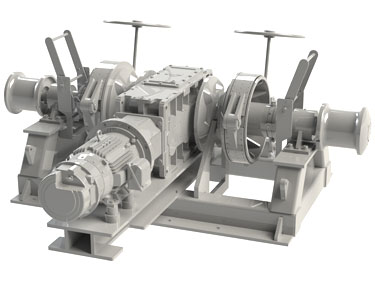

DOUBLE HORIZONTAL ANCHOR WINDLASS Schoellhorn-Albrecht
Schoellhorn-Albrecht Double Horizontal Anchor Windlasses are available as electric or hydraulic units complete with standard or custom packages. Our Double Horizontal Anchor Windlass Unit is available for most chain sizes. We offer optional capstan heads and chain stoppers. Combination winch/windlass units are also available. Anchor Windlasses are designed to meet ABS or other class society rules.
Request an Anchor Windlass Quote
Features
- Custom Engineered Units
- Chain Sizes 1/2" to 3"
- Designed per ABS Rules
- Electric or Hydraulic Operation
- Fully Enclosed Gearbox
- Fail-safe Brake
- Band Brake
- Jaw Clutch
- Chain Stripper
Options
- Capstan Head
- Control Packages
- Chain Stopper
| Model No. | Chain Size (inches) | HP | Overload Line Pull (lbs.) |
Continuous Line Pull (lbs.) |
Hoisting Speed (fpm) |
|---|---|---|---|---|---|
| DHAW-0.75-7.5 | 3/4" | 7.5 | 5,800 | 3,860 | 30 |
| DHAW-0.875-7.5 | 7/8" | 7.5 | 7,900 | 5,260 | 30 |
| DHAW-1-10 | 1" | 10 | 10,300 | 6,870 | 30 |
| DHAW-1.125-15 | 1 1/8" | 15 | 13,050 | 8,700 | 30 |
| DHAW-1.25-15 | 1 1/4" | 15 | 16,100 | 10,740 | 30 |
| DHAW-1.375-20 | 1 3/8" | 20 | 19,500 | 13,000 | 30 |
| DHAW-1.5-25 | 1 1/2" | 25 | 23,200 | 15,460 | 30 |
| DHAW-1.625-30 | 1 5/8" | 30 | 27,225 | 18,150 | 30 |
| DHAW-1.75-30 | 1 3/4" | 30 | 31,575 | 21,050 | 30 |
| DHAW-1.875-40 | 1 7/8" | 40 | 36,250 | 24,160 | 30 |
| DHAW-2-40 | 2" | 40 | 41,250 | 27,500 | 30 |
| DHAW-2.125-50 | 2 1/8" | 50 | 46,550 | 31,030 | 30 |
| DHAW-2.25-50 | 2 1/4" | 50 | 52,190 | 34,800 | 30 |
| DHAW-2.375-50 | 2 3/8" | 50 | 58,150 | 38,760 | 30 |
| DHAW-2.5-60 | 2 1/2" | 60 | 64,430 | 43,000 | 30 |
| DHAW-2.625-60 | 2 5/8" | 60 | 71,050 | 47,350 | 30 |
| DHAW-2.75-75 | 2 3/4" | 75 | 77,960 | 51,970 | 30 |
| DHAW-2.875-75 | 2 7/8" | 75 | 85,200 | 56,800 | 30 |
| DHAW-3-100 | 3" | 100 | 92,780 | 61,850 | 30 |
Fill out our request for quote form to see how we can engineer a system to meet your requirements.
